Moisture and Cargo Sweat

RELATIVE HUMIDITY, DEW POINT AND CARGO SWEAT

• RELATIVE HUMIDITY

In order to examine the role of relative humidity to the weather and its impact to humans we need to look at how the water vapour is being produced in the atmosphere:

WATER VAPOUR AND ATMOSPHERE:

Since the beginning of this world, water has been travelling in a cycle. Water from the oceans and land is transferred to the atmosphere and all the way back again. This is how life is maintained on Earth. The trigger mechanism that forces water to travel is the solar radiation. Solar radiation makes the water from the ocean and land surfaces to evaporate. This procedure turns the water liquid to water vapour and this is how the vapour is added to the atmosphere. Additionally, water(liquid) on the land surface is absorbed by plants and with the process of transpiration, water(vapour) is added to the atmosphere. As vapour moves through the atmosphere, it is cooled and condensed so as to form the clouds. Then rain or snow falling from the clouds lead the water to return back to the Earth and the cycle starts again.

B) SO HOW DO WE DEFINE RELATIVE HUMIDITY (RH) ? :

In part A, we discussed how the water vapour can be added to the atmosphere. At any given temperature, the air can ‘hold’ a maximum amount of vapour. However, most of the times the amount of water vapour in the air is less than its maximum amount. In essence, RH is the percentage of the actual amount of water vapour divided by the maximum amount of water vapour the air could ‘hold’ at that temperature. In other words, RH measures how humid or dry the air is in the atmosphere.

A                                                 B

In picture A the air is foggy. When fog occurs, air has RH of 100% . On the other hand, in picture B the air is almost dry. In this case, the air has RH of around 0%.

C) HOW HUMANS FEEL THE HIGH AND LOW RHs?

 RH plays an important role on how people feel the weather. Our bodies usually remove extra heat by sweating. The process of sweating helps the body to stay cool and maintain its current temperature. High RHs reduce the amount of water that can be evaporated from the skin and thus the body feels hotter than it actually is. This is because the more moisture the air contains, the less moisture can absorb from the skin through perspiration. On the contrary, when the RH is low, we feel same or slightly cooler than the actual temperature because now sweat can be evaporated from the skin.

IMPORTANT

Air temperature gives an indication of how the weather will be like. Relatively warm or relatively cold. However, bodies feel warmer or cooler than it actually is; depending on humidity as mentioned above. Regarding the cooling effect wind speeds also play a crucial role. The combination of actual air temperature, humidity and wind gives the ‘heat index’ and the ‘wind chill’ respectively. This results in the ‘feels like’ temperature which is an important meteorological parameter to look at when people get information about the weather.

• DEW AND DEW POINT

Dew formation is common at nights when the sky is clear. In clear nights and when the winds are light, the Earth emits heat to space in the form of long wave radiation. This results in the gradual decrease of the Earth’s surface temperature. As the surface of the Earth cools down, so does the lowest layer of the atmosphere which is near the ground. Therefore, the water vapour molecules that are close to the ground are condensed when they reach contact with the cold ground surfaces as well as with other cool surfaces like car glasses. This procedure attracts other water vapour molecules for further condensation and the result is the formation of the water droplets. This moisture, we sometimes notice on the roads and cars early in the mornings, is what we call DEW.

• What do we call dew point?

Dew point or better dew point temperature is the temperature to which the air with a certain amount of water vapour should be cooled under constant pressure so as the air becomes saturated. In other words, it is the temperature at which we can achieve air saturation which means air relative humidity at 100%.

• What values can the dew point temperature take?

The temperature to which air becomes saturated or the ‘dew point temperature’ can take any values above 0C. When this temperature is below 0C, then it is not called ‘dew point temperature’ but ‘frost point temperature’.

• Can the increase or the decrease of the air temperature affect the dew point temperature?

NO, not at all. Neither the increase, nor the decrease of the air temperature affects the dew point temperature. Why is that? Let’s have a look at the example below.

EXAMPLE

If the air temperature is 20⁰C and the RH is 70%, then the dew point is 14⁰C. If we increase the air temperature to 30⁰C, the dew point remains the same at 14⁰C. This is because the RH now has decreased to 40%.

The conclusion from this, is that there is a relation between both air temperature and the RH with the dew point! See now below!

• Does the increase or decrease in air temperature affect the RH?

Yes. Increase or decrease in air temperature influences the RH. As we mentioned, air can ‘hold’ a maximum amount of water vapour at any given temperature. By raising the air temperature, air can then ‘hold’ more water vapour compared to what the air holds at a lower temperature. Thus, given that the amount of water vapor stays the same, or the moisture in the air remains constant, an increase in the temperature leads to a decrease in the relative humidity and vice versa. That’s why in the example above the RH decreases when we raise the temperature !!

What about dew point then??

• What factors can modify the dew point?

Dew point is in relation with the absolute humidity or in other words with the actual amount of water vapour in the atmosphere.
Hence, changes in the absolute humidity lead to changes in the dew point as well.
An increase in the absolute humidity induces an increase in the dew point values and vice versa.

CONCLUSION

In order to reduce the dew point temperature and consequently the chances of vapour saturation inside a room, we should reduce the absolute humidity values. This can be achieved by reducing the production of water vapour inside the room which can be done by proper ventilating.

• Dew point is an important meteorological element. Why?

Dew point is an essential weather element that aids the forecasting procedure for different regions. Therefore, dew point is always mentioned to weather maps with the symbol D.P.. In aviation meteorology, two figures are usually used to define temperature (e.g. 10/4). The number 10 (10⁰C) gives the air temperature and the number 4 (4⁰C) gives the air dew point. Both temperatures help us to find out how humid the air is and this makes it important especially for the airfields. For instance, if the air temperature is 15⁰C and the dew point is 6⁰C then the air is dry and the relative humidity is low. On the other hand, if the air temperature is 8⁰C and the dew point 7⁰C, then the air is humid and the relative humidity is close to 100%. In a forecasting perspective, this means that in this case, for example, there is a high chance of fog formation. Consequently, the difference between air temperature and dew point is an essential tool for meteorologists as it helps them in fog forecasting.

• MOISTURE ON VESSEL’S CARGO

Ships travel long distances at sea where the air is usually humid and can also change climates such as moving from a warm tropical zone to a cold winter zone. These changes can lead to cargo sweat especially when the cargo contains hygroscopic material. Even though hygroscopic products are more in danger, the non-hygroscopic ones such as steel; or products that are packed in hygroscopic material such as wood or paper can also be harmed when exposed to excess moisture.

A) WHAT IS CARGO AND SHIP’S SWEAT?

Vessels that carry hygroscopic products, such as sugar, cotton, coffee, cocoa etc have a natural moisture inside them. When excessive moisture occurs, this can lead to cargo damage resulting in mildew or rot. Cargo sweat happens when warm, moist air penetrates into a hold and condenses on the exposed surfaces of colder cargo.

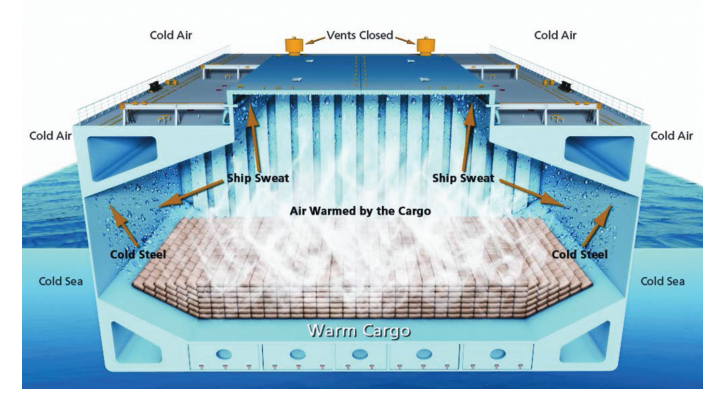

There is also another term called ship’s sweat. This is the condensation of the moist, warm air inside a hold on the vessel’s structure when the vessel moves to colder climates. This can again cause damage to the cargo as overhead drips might develop and condensed water comes in contact with the ship’s side or bottom of the hold where the cargo is located.

The damaged cargo can be rejected from the receivers at the end of the passage leading to cargo claims due to ‘moisture damage’.

Cargo sweat

Ship’s sweat

B) RELATIVE HUMIDITY, DEW POINT TEMPERATURE AND VENTILATION

 As mentioned earlier, as the air temperature rises so does the amount of water vapor the air can hold. As a result relative humidity decreases. When temperature decreases, the amount of water vapor decreases so the potential for condensing the water from gas to liquid form increases. The condensation is greater when temperature falls from very high to very low values.

In general, the air always contains some amount of moisture and it is never totally dry. On the other hand, air is rarely saturated except long periods of rain or fog. So the amount of water that air can hold depends on the prevailing conditions. Air temperature at the deck will generally have a relative humidity of 80% or more when the ship is over the open ocean.

Dew Point temperature is also an important element, apart from relative humidity, when considering levels of moisture at a vessel.

When it comes to the decision to ventilate, dew point temperatures should be measured and compared. These are the dew point of the air and the dew point of the air inside the hold. The air dew point can be measured with wet and dry bulb thermometers while the dew point of the air in the hold with a ‘whirling psychrometer’.

But WHEN SHOULD VENTILATION TAKE PLACE?

Now that we have the measurements we need to check:

• The dew point rule :

VENTILATE if the dewpoint inside the hold is higher than the air dewpoint outside the hold.

DO NOT VENTILATE if the dewpoint inside the hold is lower than the air dewpoint outside the hold.

• The three degree rule :

Sometimes the accuracy of the dew point temperature inside the hold is ambiguous. In such cases we can compare the average temperature of the cargo at the time of loading with the outside air temperature.

IF the dry bulb temperature of the air is at least 3 degrees cooler (>=3^o) than the cargo temperature then VENTILATE

DO NOT VENTILATE if the dry bulb temperature of the air is less than 3 degrees cooler (<3^o) than the cargo temperature.

It’s also important to note that if the vessel travels from hot climates to cold climates then the cargo that contains hygroscopic products needs ventilation while on the other hand not.

HOWEVER, in heavy weather situations, when rain and sea spray can spread into the vessel, precaution measures should be taken in order to avoid rain and spray entering the hold where the cargo is kept. In such circumstances, ventilation should be suspended until weather improves.

Last but not least, it’s important not to forget the ventilation during the night when air temperatures are lower so ship sweat is more likely than during the day.

Author: Triantafyllia Sideri / Operational Meteorologist
